Objective

Assess the effectiveness of the SpheronVR ScanLight to provide illumination of a night scene scan.

Method

I rigged a GARMIN VIRB action camera to the top of the SceneCam to provide a ‘dynamic’ ‘first-person’ view of the Scanlight in action, plus an adjacent system to capture a ‘third-person’ perspective.

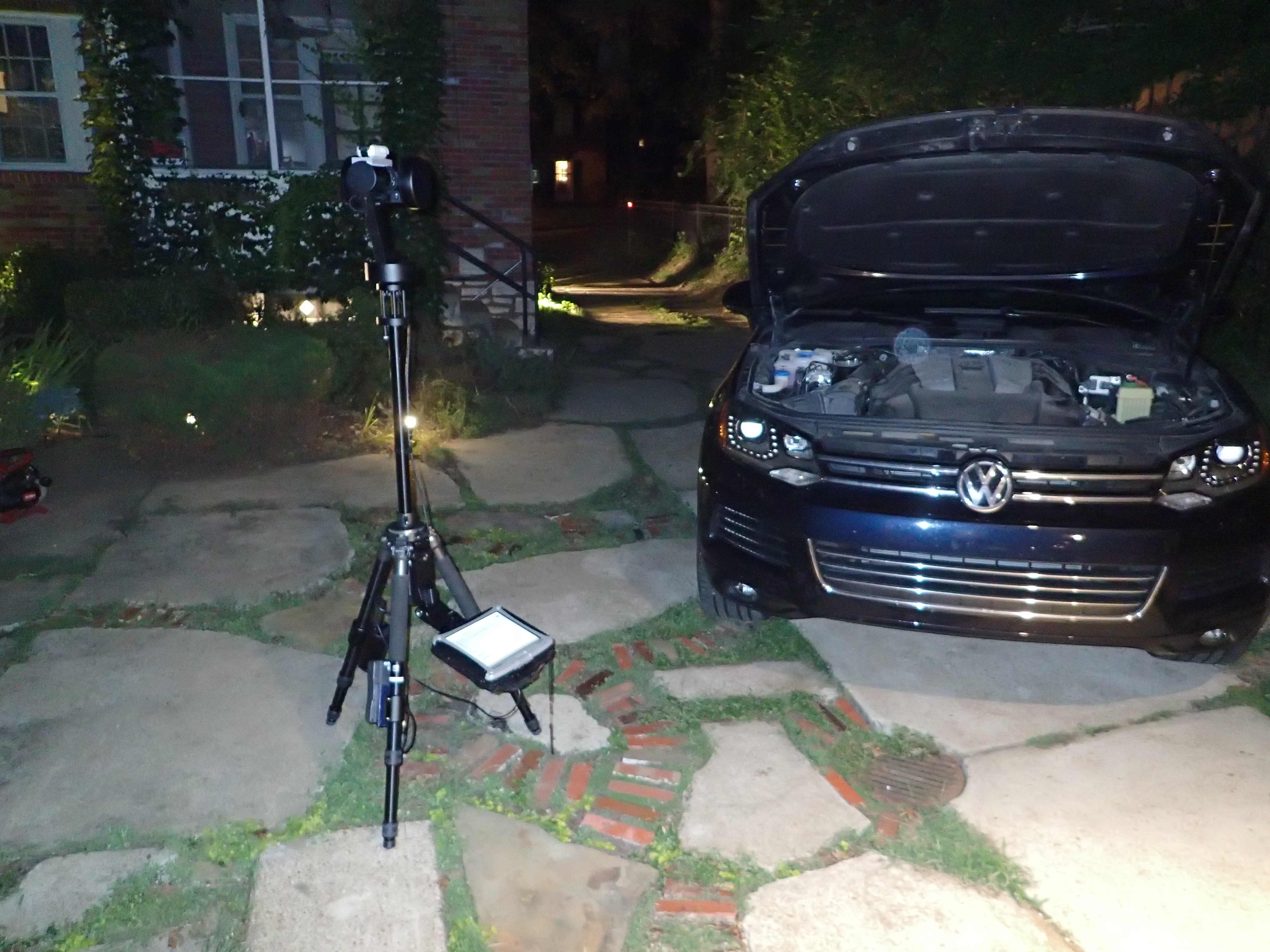

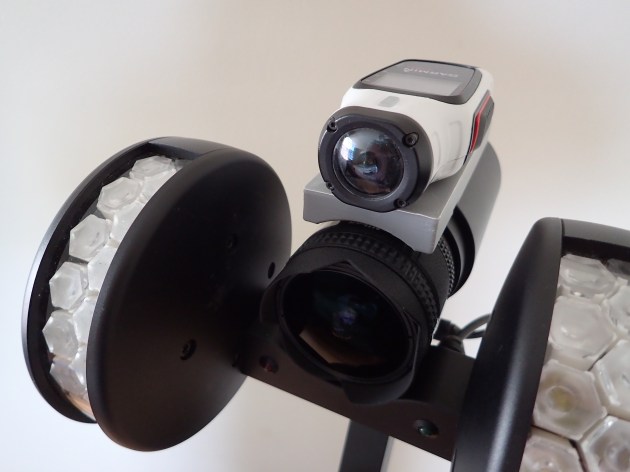

Above : System in situ – several captures taken with and without lighting.Above : SpheronVR system with GARMIN VIRB mounted on top for ‘first person’ view of light output.

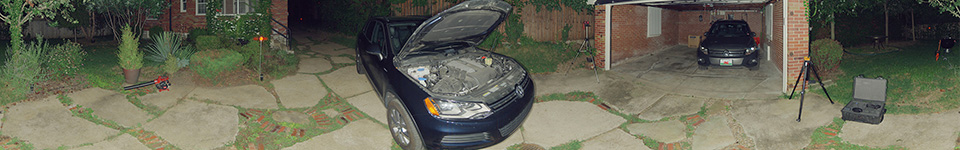

Capture Results – (NO lighting other than ScanLight and ambient light).

VIMEO version of above available here

https://vimeo.com/184393147

Conclusion

As footage shows, the ScanLight was more than capable of lighting a very dark night scene well beyond the 12 metre / 40 feet mark.

It can probably attract insect life (eg moths) well beyond that range too! 😉

The primary benefits are:

• Compact Solution
• Self Powered and Efficient light output
• Calibrated / Sustained 6500K output
• Effective range of 12 metres / 40 feet plus
• Operation of approx 1.5-2 hours per battery cell (system has two cells)
• No need for additional floodlighting
• No requirement for additional power supplies
• No cables / clutter to contaminate crime scenes or infrastructure studies / point cloud colorization application
• Ideal when you are not concerned about ambient light captures
• Speeds up captures by ensuring consistent capture times, even at maximum resolutions
