NCTech iSTAR Image Management

All data was stored on an SD card, which requires the files to be transferred onto a suitable computer for additional post-processing and viewing. I did not try any external hard drives for storage.

The iSTAR does have wifi connectivity for control and viewing over a smartphone, however this function was not evaluated during these tests, mainly due to concerns over battery life / reliability.

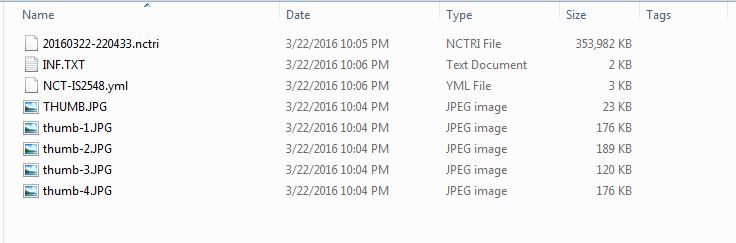

Folder contents (Windows OS)

iSTAR_Folder_View

Above : Folder contents (Windows OS)

Each capture is saved inside its own folder, storing the following:

  • Raw data file (Proprietary NCTRI format)
  • Info Text
  • YML calibration file
  • THUMB.JPG (‘pseudo panorama)
  • thumb-1,2,3 and 4 (individual lens captures)
