3.02.01 – Case Study 01 – Aircraft interior scan : Spheron SpheroViewer

SpheronVR SpheroViewer

  • Native .SPH files can be viewed directly within the SpheroViewer as an immersive image.
  • Alternatively, processed OpenEXR’s can be viewed inside the SpheronVR SpheronViewer

SpheronVR SpheroViewer (screenshots using .SPH data)

  • Numerous screenshots are taken to show details / issues.
  • Click all images for larger views.
  • All larger images are captured at screen resolution (approx 1920 x 1200) (as with iSTAR screenshots).
  • Views taken match views of the iSTAR captures for convenient comparison

Spheron_073_EC_121_Zenith_Wide

Above : SceneCam Zenith view

  • NO ‘stitching issues’ at zenith on Spheron image (as resultant image is NOT derived by stitching separate images together)
  • A little noisy due to capture settings (can be smoothed out) with alternative capture settings.

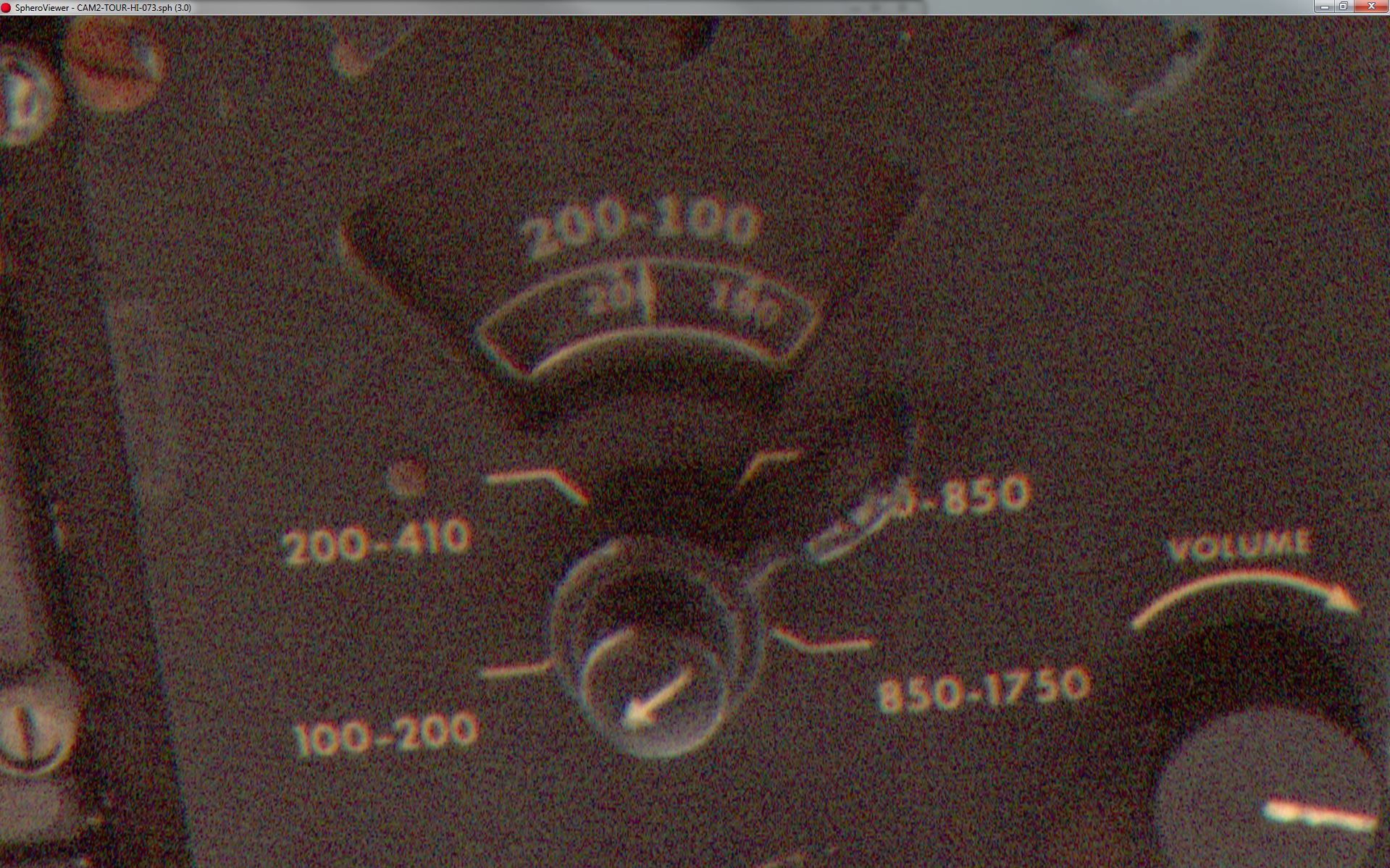

Spheron_073_EC_121_Cockpit_Roof_ZIn_01

Above : SceneCam switchgear close up

  • Switch detail / label fidelity.
  • Slightly noisy
  • No discernible Chromatic Aberration

Spheron_073_EC_121_Zenith_ZIn_01

Above : Spheron SpheroViewer screenshot Alternative close up.

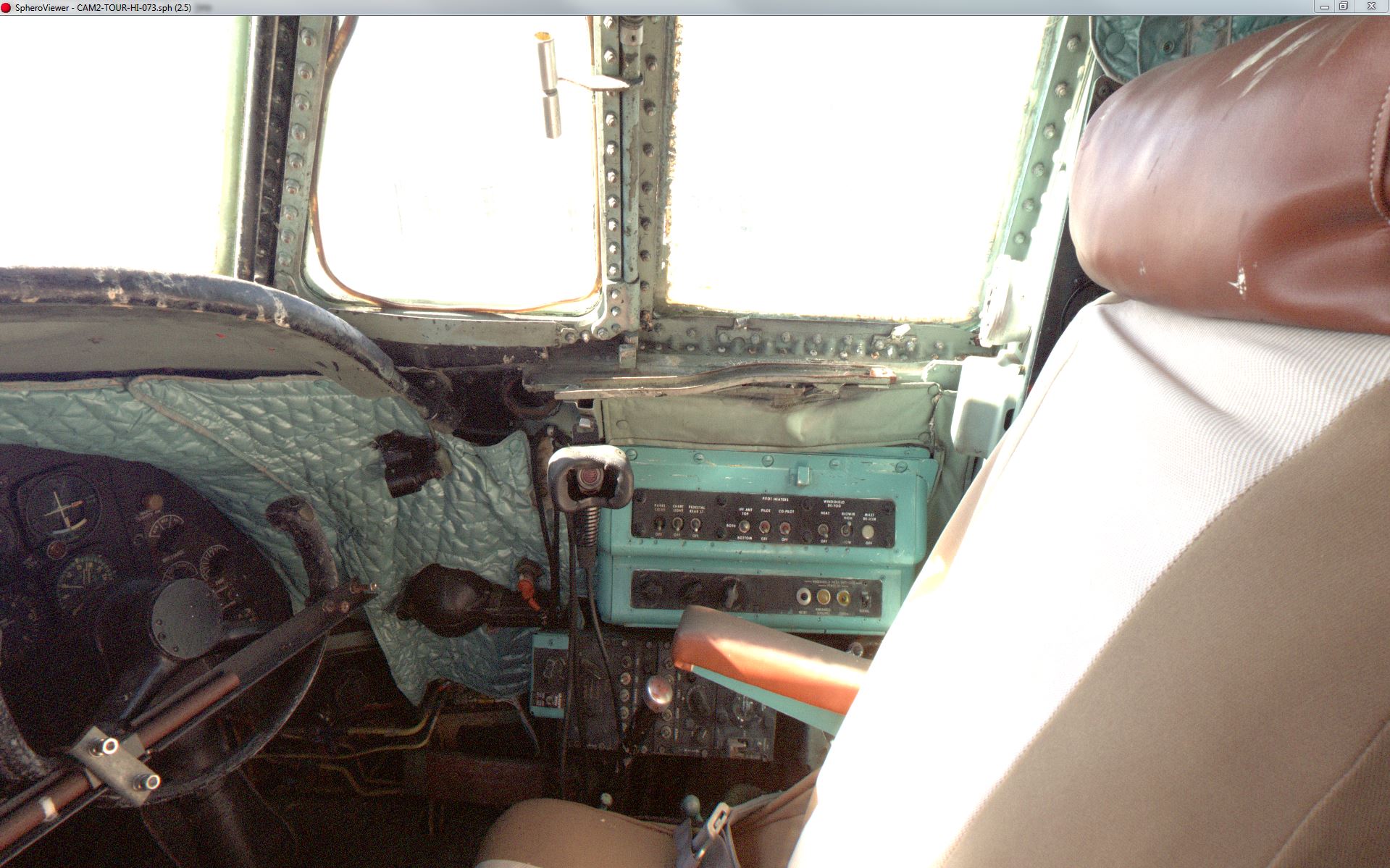

Spheron_073_EC_121_Cockpit_Right

Above : Spheron SpheroViewer screenshot Right seat view

  • Clean view
  • Decent detail on switch gear
  • External details can be ‘recovered’ by cycling down the EV range (as below)

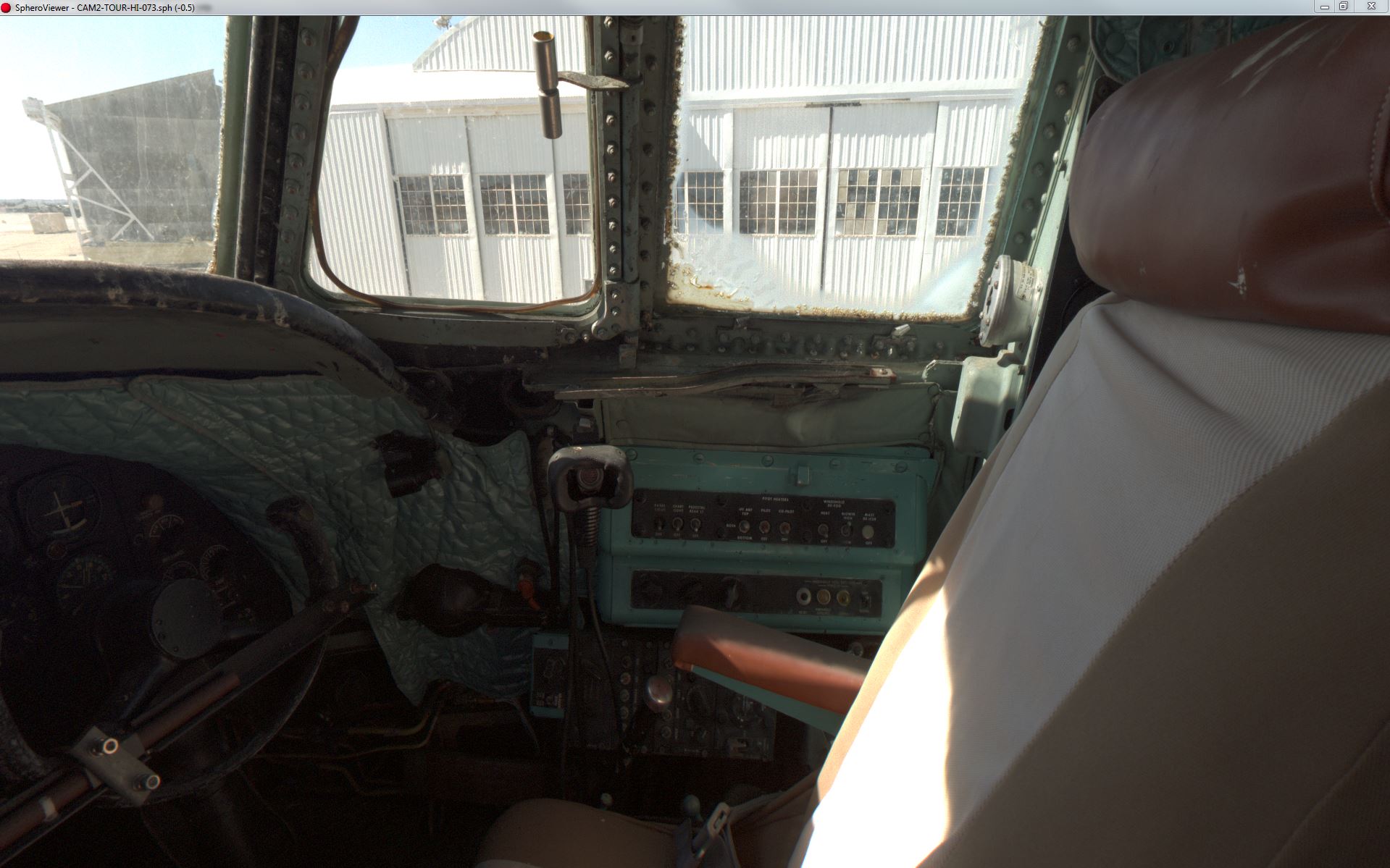

Spheron_073_EC_121_Cockpit_Right_Minus_EV

Above : Spheron SpheroViewer screenshot showing dynamic exposure adjustment (compare with previous image).

A video showing dynamic adjustment of exposure and the SpheroViewer in action can be seen via the Glossary section, under SpheronVR SpheroViewer

Spheron_071_EC_121_Cockpit_Left

Above : Spheron SpheroViewer screenshot Left seat view

  • No Lens flare
  • Detail correct (top, rear of seat etc) and includes knurling detail.
  • Less Chromatic Aberration
  • Below Zoomed in showing stitching detail.

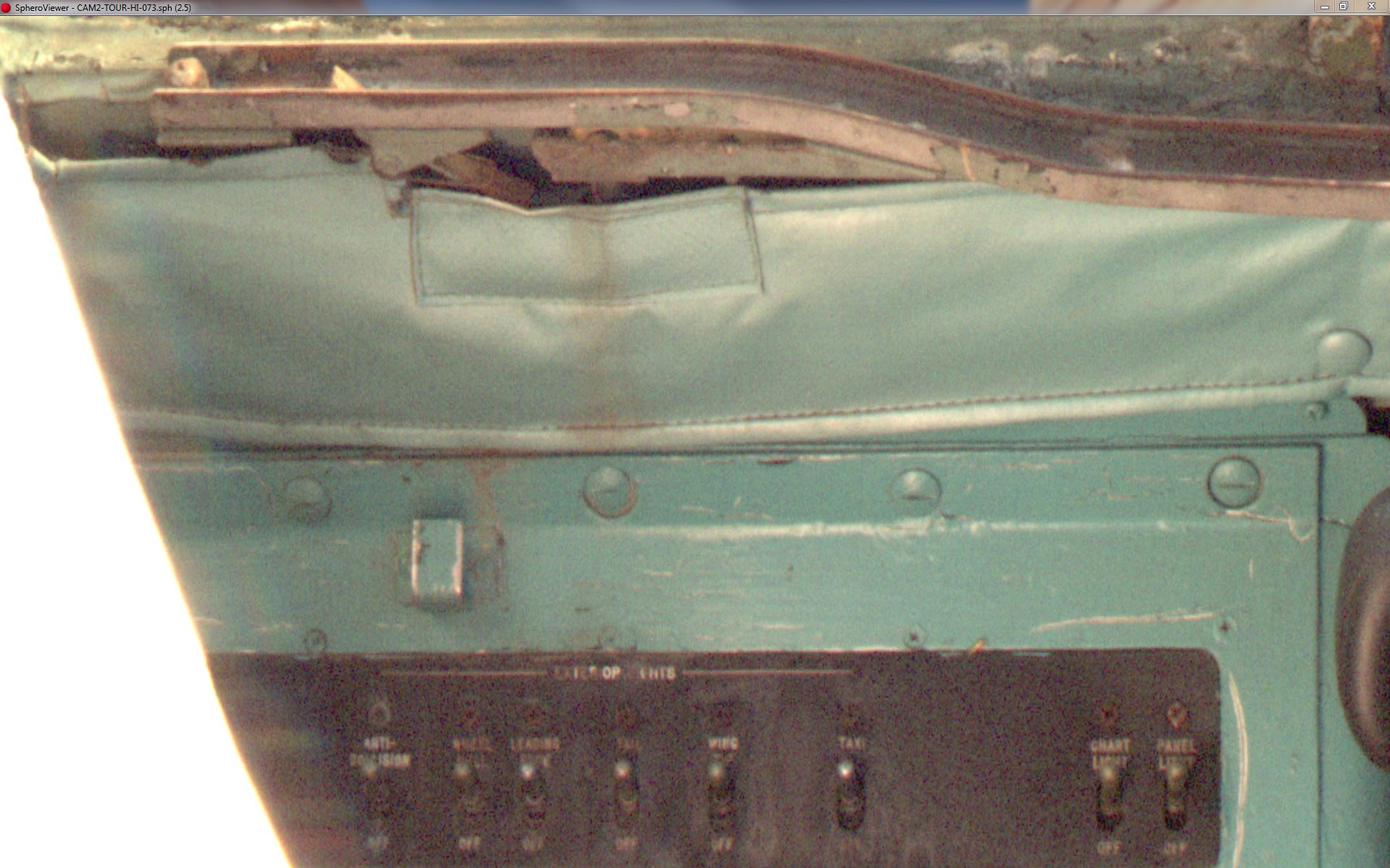

Spheron_073_EC_121_Cockpit_Left_Stitching

Above : Spheron SpheroViewer screenshot – Close up, showing detail of capture

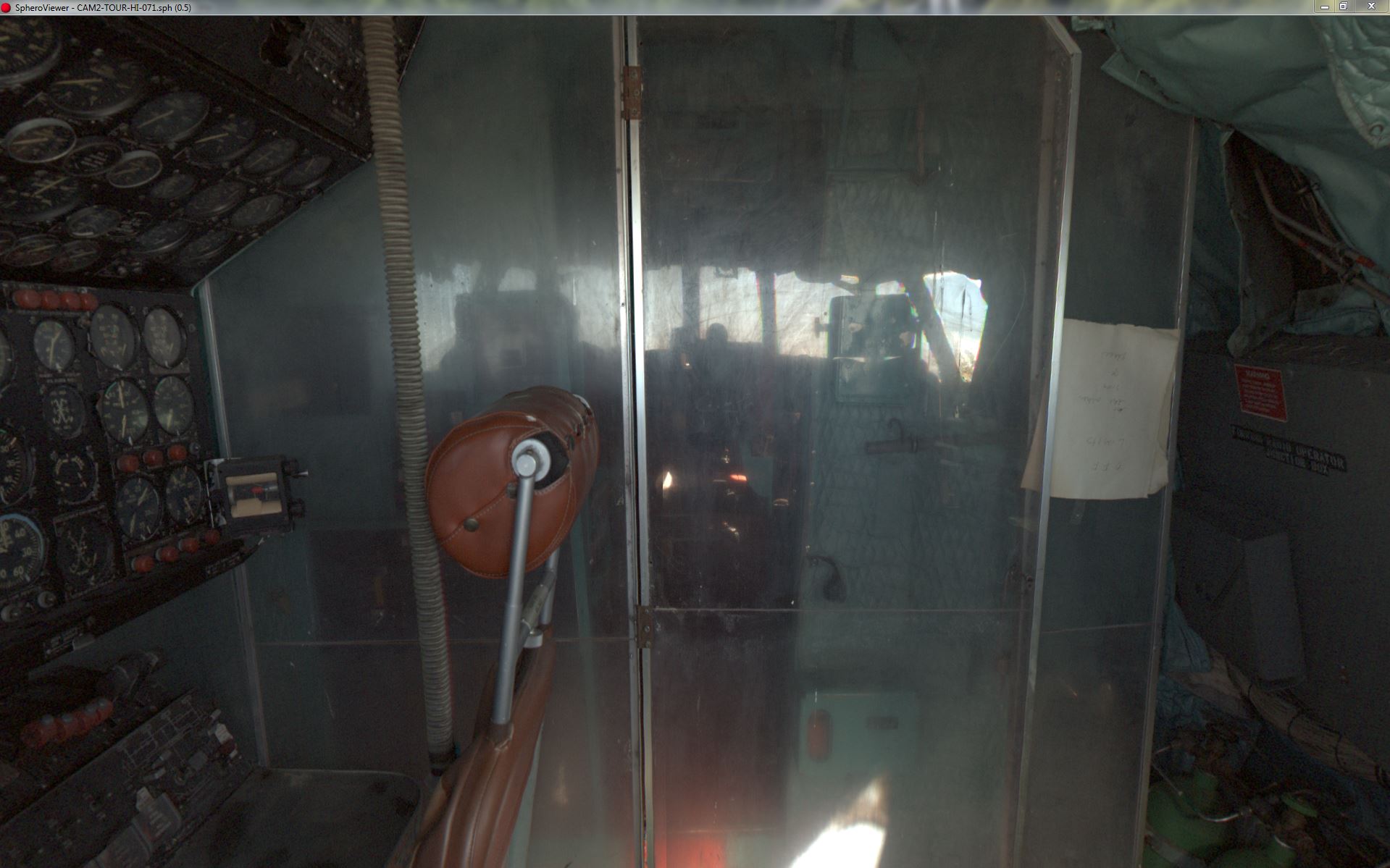

Spheron_071_EC_121_Cockpit_Rear_01

Above : Spheron SpheroViewer screenshot Rear View

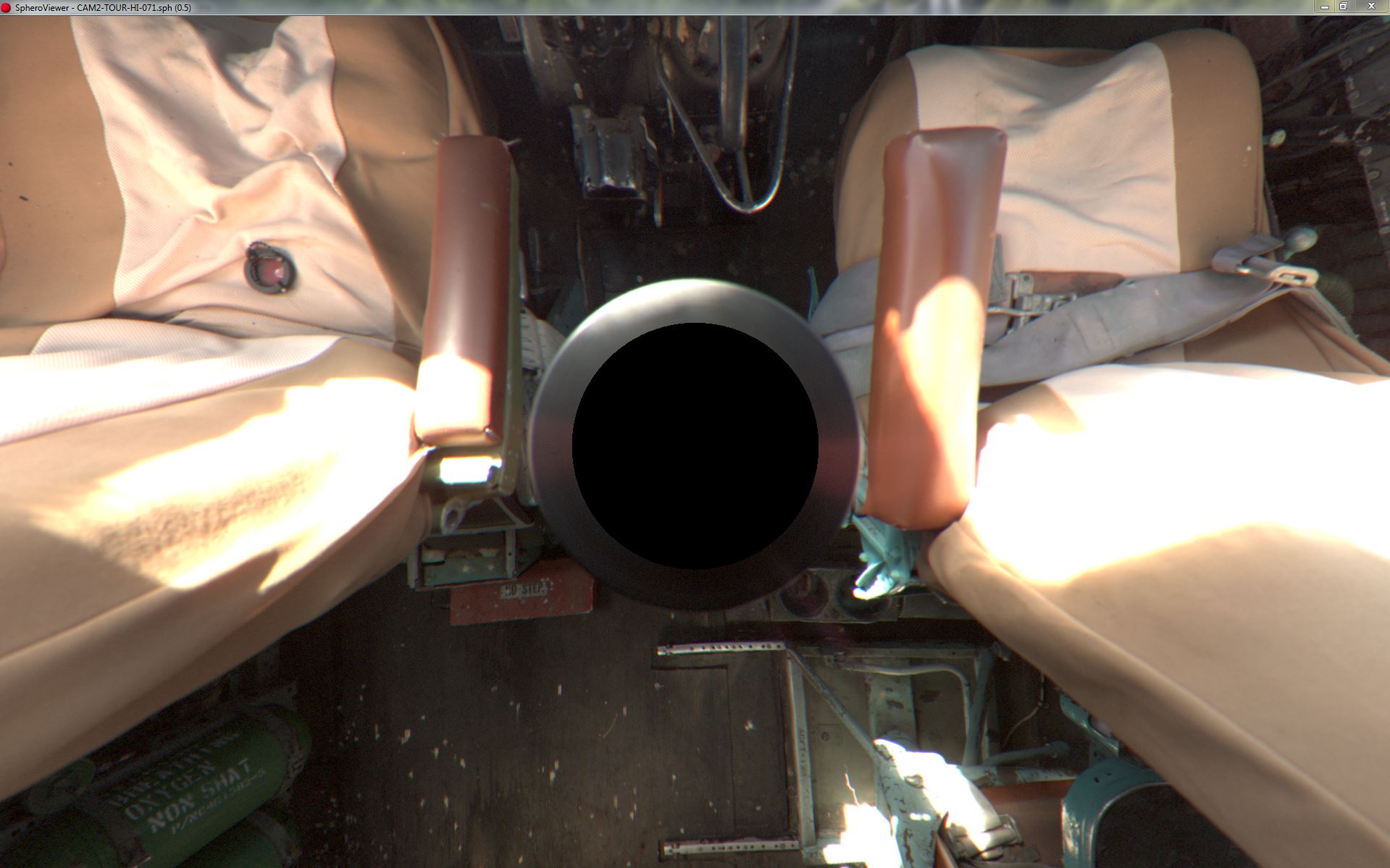

Spheron_071_EC_121_Cockpit_Nadir

Above : Spheron SpheroViewer screenshot – Nadir

  • Very small footprint
  • No ‘stitching’ or alignment issues on detail (as resultant image is NOT derived by stitching separate images together)

The Spheron SpheroView viewing application is part of the SpheronVR SceneCam suite of software, as shipped with the camera system (as tested).
