GNOME Monosoupape – Ready for printing!

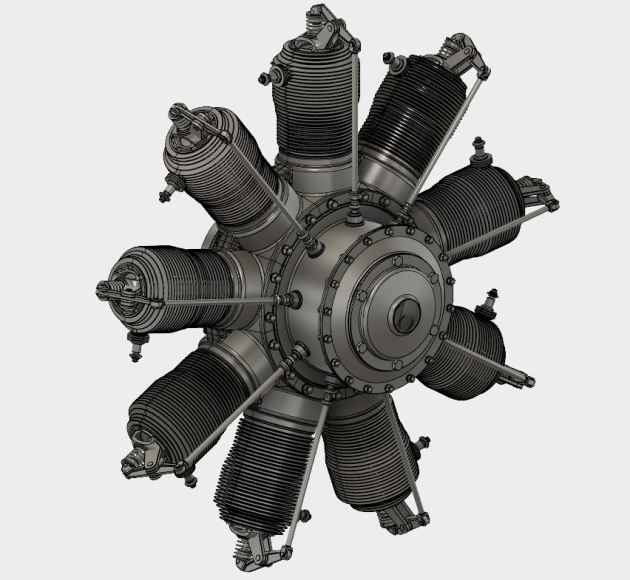

F360_Gnome_Monosoupape_Front

Above : Front View – Completed Gnome Monosoupape 100 HP Engine model (modelled in Autodesk’s Fusion 360)

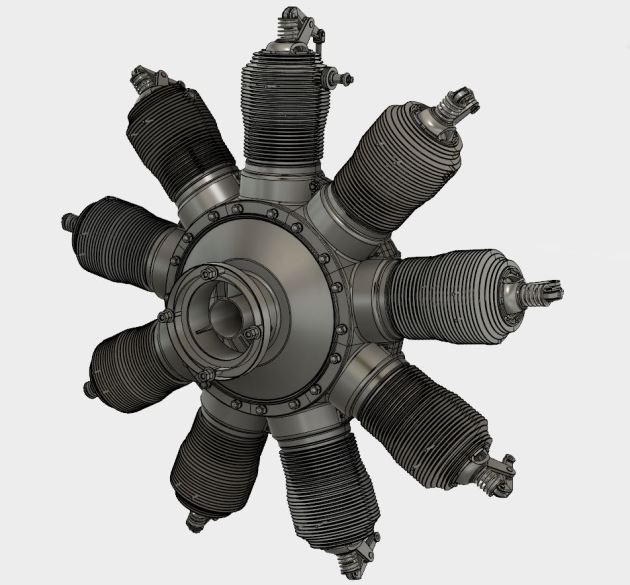

GNOME_Rear_Shot

Above : Rear View – Completed Gnome Monosoupape 100 HP Engine model (modelled in Autodesk’s Fusion 360)

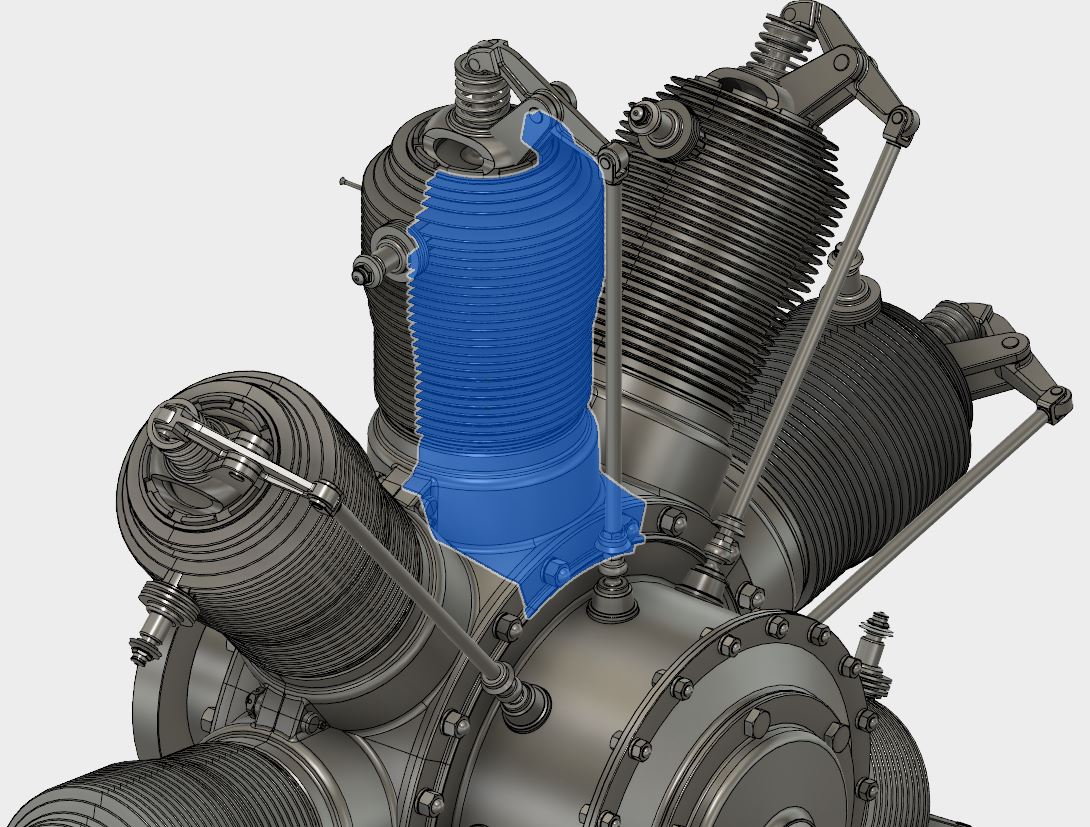

F360_Gnome_Monosoupape_Front_CUp_Print_Section

Above : Close Up showing how model will be 3D printed (blue is one piston half)

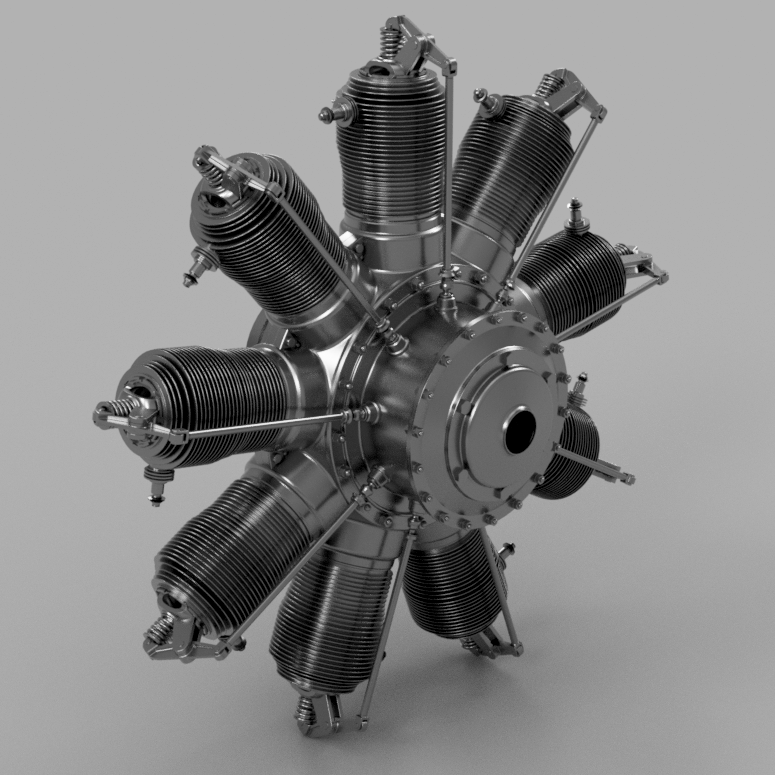

Gnome_100P_February_2016_Arrayed v3

Above : Rendering (rendered using Autodesk’s Fusion 360 native renderer)

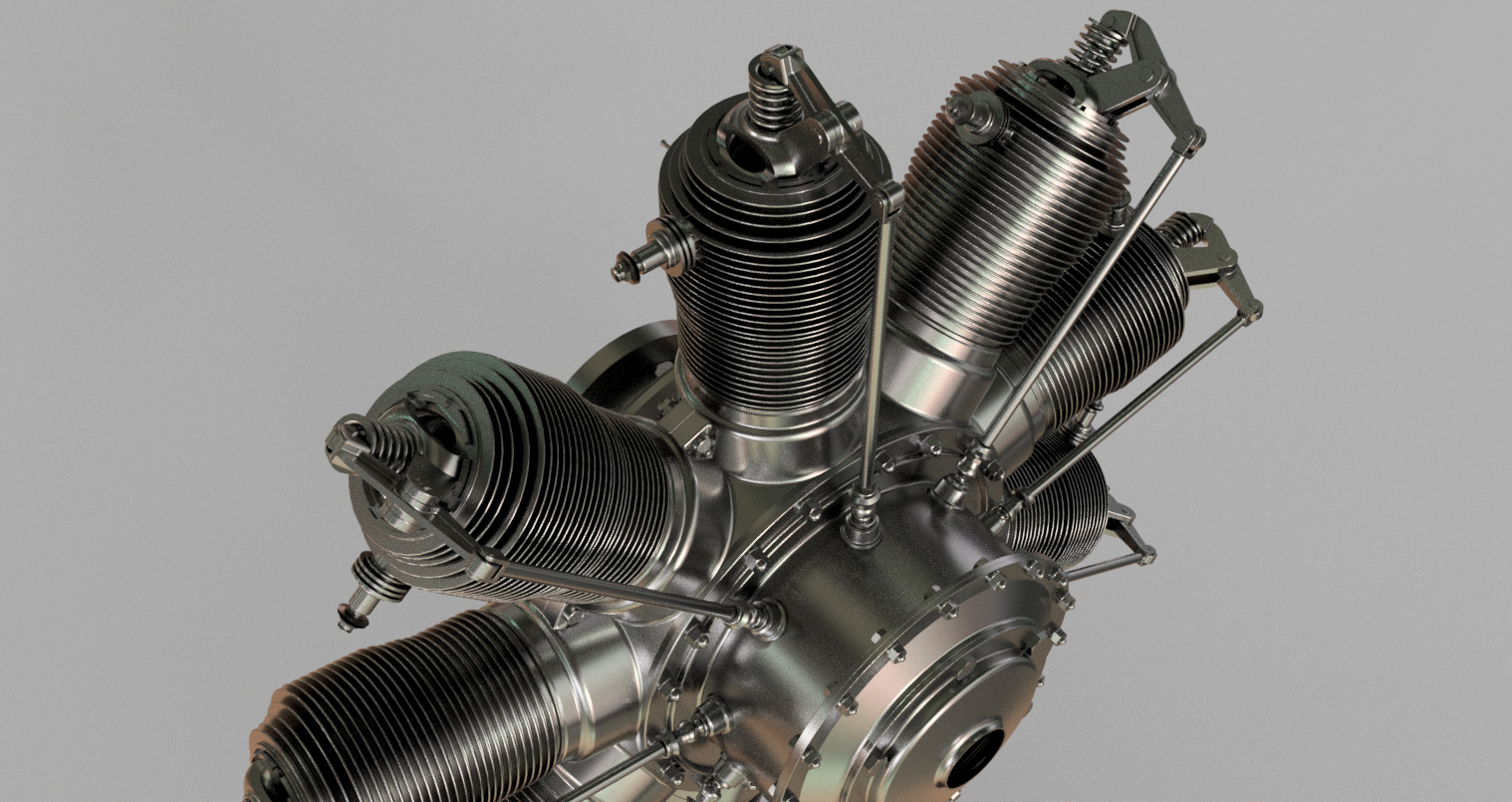

Gnome_100P_February_2016_Arrayed_Final v2_CUp

With the model completed and optimised for 3D printing, our ambition is utilise a LulzBot TAZ 5 3D printer to complete the job using mid-gray ABS filament.
